Ceramic Tile Samples Product Photography

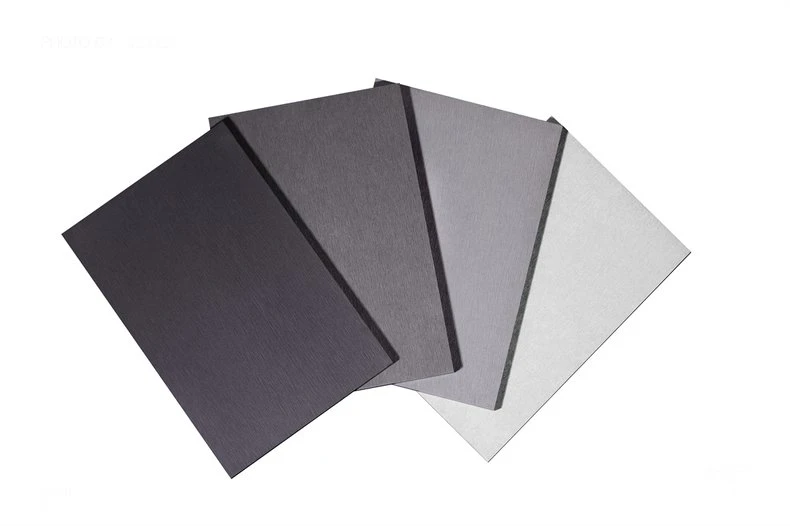

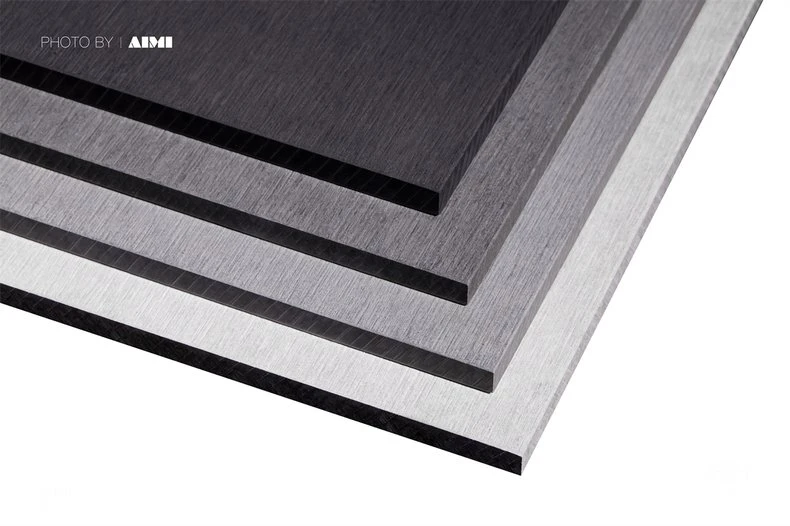

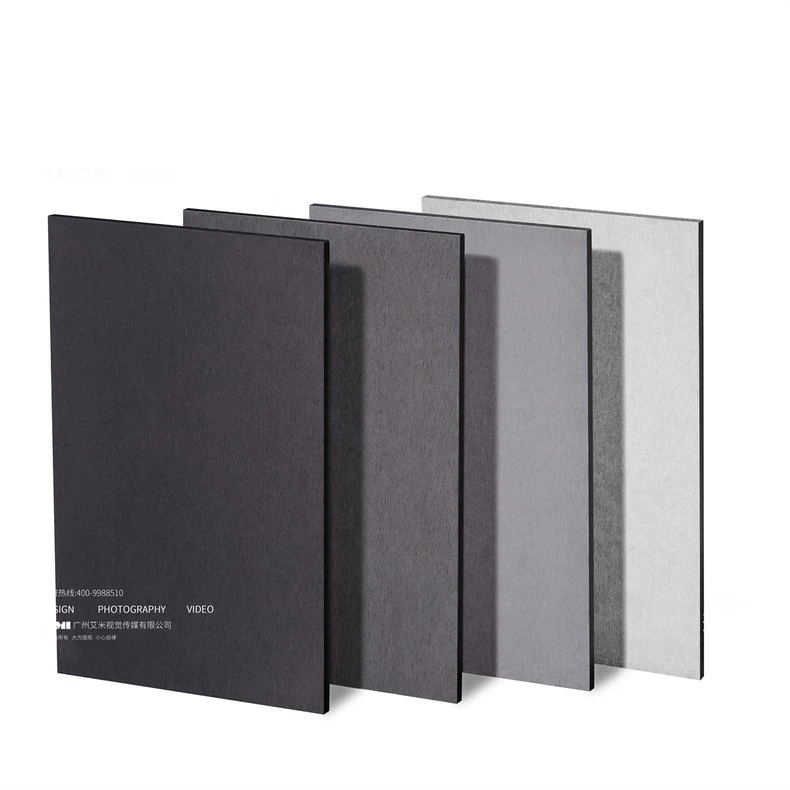

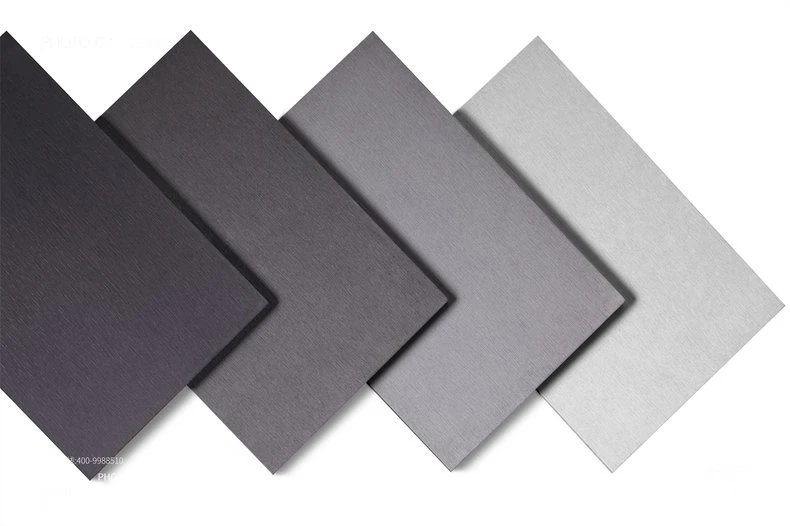

The client manufactures ceramic tiles for interior projects and commissioned AIMI Visual Media in Guangzhou, China to photograph its sample range for catalog and marketplace use. The samples are thick through-body panels with a fine brushed matte texture, spanning 12 colors from sand and terracotta to charcoal and silver. We delivered 9 studio images from our Guangzhou studio: 2 full-range stacks, 3 dark and neutral series on split-tone sets, and 4 grayscale arrangements on white, all color-managed against the physical panels under a full commercial license.

Photography Challenges

1. Color accuracy is the product. Buyers order from these images. If terracotta drifts toward brick red on screen, the sample that arrives will not match what the buyer approved, so every setup is grey-card referenced and the grade is checked against the physical panels, not against memory.

2. Matte texture needs raking light. The fine brushed grain only shows under light that rakes across the surface at a low angle. Front light flattens it to a plain color card, but raking light also exaggerates every edge chip and dust speck, so panel prep has to be exact.

3. Dark panels merge into one slab. A stack of near-black panels reads as a single block unless each layer catches its own edge highlight. The light falloff across the stack is engineered panel by panel, which is why the dark series separates cleanly at the edges.

4. Gloss level lies at glancing angles. A matte panel meters brighter as the camera angle drops, so the same sample can photograph as two different finishes. Camera height is locked across the range and the panels, not the camera, do the moving.

Our Approach

Color-Range Stacks

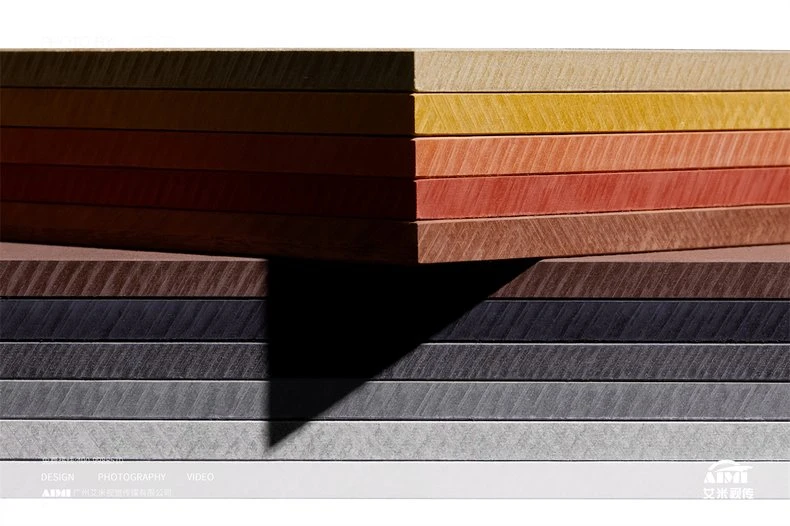

The 2 range frames stack all 12 colors in a stepped arrangement so each panel shows its face and its thickness edge at once. We shot them with the 24-70mm at 70mm from a raised tripod rather than a wider lens up close, because a wide lens at short distance makes the near panels larger than the far ones and misrepresents the range. A large diffused source at about 45 degrees keeps the matte texture readable without specular glare, and a white bounce card on the shadow side holds the darker panels off the noise floor.

Dark Series on Split Sets

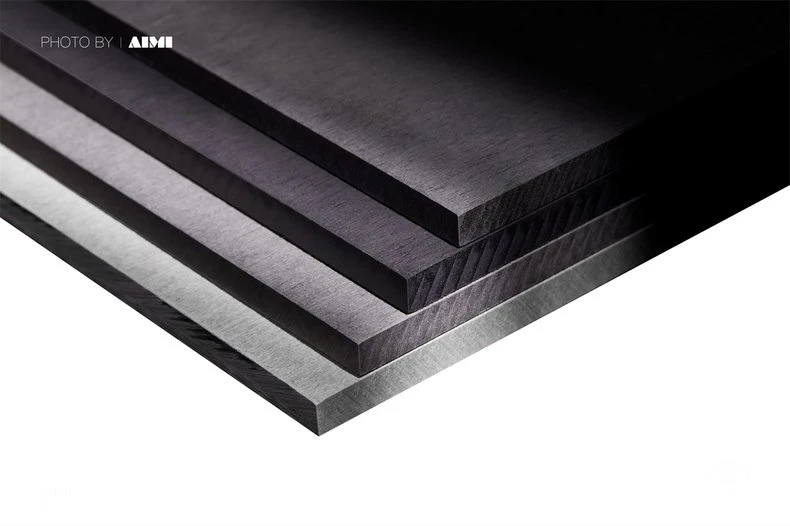

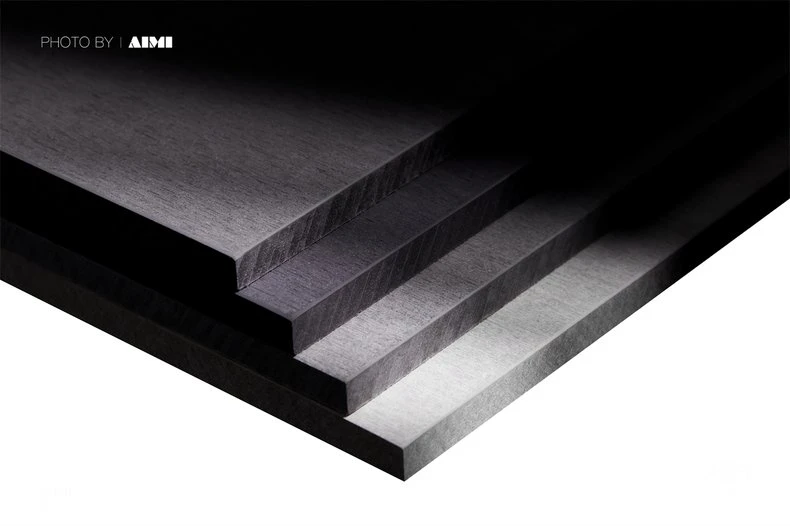

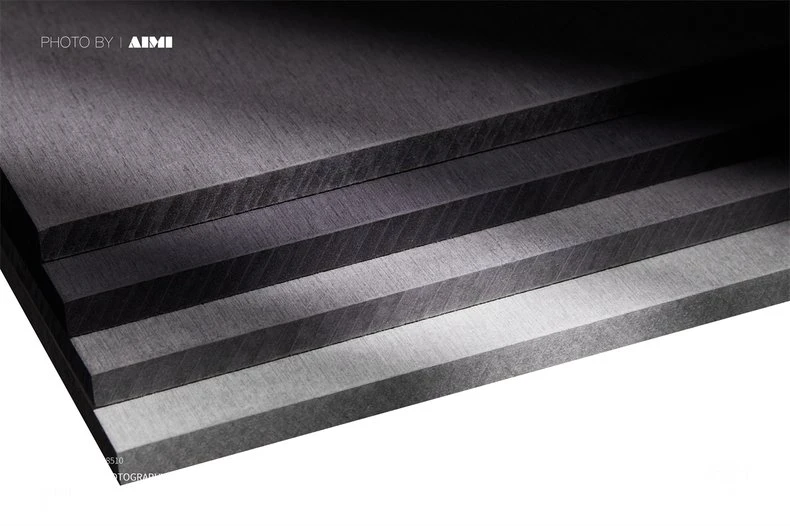

The charcoal and black series sits on sets split between black and white. The panels are stacked in a uniform offset, and the main light rakes in low from the front so every layer catches a separate edge highlight while the gaps between panels fall into clean shadow. That falloff is doing real work: it is the only thing separating 4 near-black panels from each other on screen. The split set gives buyers both references at once, dark panel on black and dark panel on white.

Post-Production and Retouching

All 9 frames grade against the physical panels: white balance locked at 5000K with a grey-card reference at every set change, and each color matched to its sample within DeltaE 2 in retouching. Dust and edge chips were cleaned at 200% zoom, with 0.5px output sharpening. Files were delivered at 2000x2000px sRGB in JPEG (quality 90) and WebP, ready for catalog layout and marketplace upload.

"A sample stack is a promise: the panel in the photo has to be the panel that leaves the factory. That is color management, not styling." — June, Product Photography Team Lead

Frequently Asked Questions

What does sample documentation like this cost?

This 9-image delivery mixes 5 range and white-sweep frames at $12 per image with 4 styled split-set frames at $35 per image, which comes to about $200. A full color series of 10 or more panels takes 10% off under our volume pricing.

How long does a 9-image sample set take?

This set was delivered in 5 business days, inside our standard 5-7 business day schedule. Most of the studio time goes to panel prep and stacking: every sample is wiped and inspected for edge chips before it goes on the set, because raking light shows every flaw.

Do these images meet marketplace requirements?

The white-sweep frames follow the product-on-white main-image rules and the full delivery is 2000x2000px sRGB, above the 1000px zoom minimum used by Amazon. The split-set frames are built for catalog pages, secondary slots, and A+ Content rather than the main image.

How do you keep 12 panel colors accurate?

Every setup is grey-card referenced with white balance locked at 5000K, and retouching matches each panel to the physical sample within DeltaE 2. The reference panels stay on set through the whole shoot, so the grade is checked against the product, not against a screen.

Can the images show thickness and texture, not just color?

That is what the stepped stack is for. Offsetting each panel exposes its cut edge and full thickness, and the raking light picks up the fine brushed grain on the face. A flat front shot of one panel would give color and nothing else.

How do you keep dark panels from merging together?

Each layer has to catch its own edge highlight. The main light rakes in low from the front so the near edge of every panel lights while the gap behind it falls into shadow, and the light falloff across the stack is tuned panel by panel until all 4 layers separate on screen.
