GSPEK Motor Oil Product Photography
- Published:
- 2024-04-08
- Lead Photographer:
- Garbo
- Source:
- AIMI Visual Media Co., Ltd.
- Last Updated:
- 2026-07-27 15:12:45
GSPEK motor oil product photography for SPK Corporation, a Japanese lubricant brand from Osaka: 4 finished images covering 2 SKUs, shot at the AIMI Visual Media studio in Guangzhou, China. The set pairs 1 white-background pack shot with 3 action and creative frames, delivered as 2000x2000 px masters in 5 business days.
▶ View full project details, specifications & FAQ
GSPEK is a Japanese lubricant brand operated by SPK Corporation, Osaka, producing 4-liter rectangular tinplate steel can motor oil for cross-border e-commerce sale through Amazon FBA, Shopify, and wholesale distributor channels. We shot this 2-SKU set (0W-20 SP/GF-6A kiwami line, 5W-30 SN/GF-5 full synthetic) at AIMI Visual Media, Guangzhou, China. The 4 finished images include a compliant white-background main pack shot, a close-up pour-action detail, and two abstract high-speed liquid concept frames for primary listing images and supplementary advertising use.
Project Overview
| Project Overview | |
|---|---|
| Client | GSPEK - Japanese lubricant brand by SPK Corporation, Osaka, Japan |
| Product | Full synthetic motor oil, 4-liter tinplate can; 2 SKUs (0W-20 SP/GF-6A kiwami line, 5W-30 SN/GF-5) |
| Shots Delivered | 4 finished images (1 white background, 1 pour-action, 2 creative concept) |
| Lead Photographer | Garbo, Director of Photography |
| Shoot Location | AIMI Visual Media studio, Guangzhou, China |
| Turnaround | 5 business days |
| Usage License | Full commercial license |
Photography Challenges
- Dyed cyan-blue lubricant reads almost black under front-only lighting, which makes poured oil streams appear as dark ink rather than matching the fluid's actual in-bottle color.
- Tinplate can material and the glossy black-to-blue gradient label reflect all surrounding studio surfaces, which creates specular streaks that obscure printed label text and kanji markings.
- The smooth black-to-royal-blue label gradient is prone to visible banding when backgrounds are cleaned to pure 255 white, which creates uneven color artifacts across the label face.
- The two SKUs share a near-identical label layout with only viscosity and spec block differences, so mismatched lighting across separate shoot sessions breaks visual consistency for the unified product listing family.
Our Approach
White Background Pack Shot
The white-background pack shot covers the 0W-20 kiwami-line can. We used the EF 100mm f/2.8L Macro IS instead of the 24-70mm for its flat field, which keeps label text sharp edge to edge with zero perspective distortion on the 24cm tall rectangular can. We set aperture to f/11 to cover the can's 8cm depth from front face to rear seam in full focus. Two 60x90cm softboxes sit at 45 degrees symmetric to control specular reflection on the gradient label, with exposure set to retain gold kanji detail instead of blowing highlights. A faint soft contact shadow under the can prevents the object from appearing disconnected from the frame.

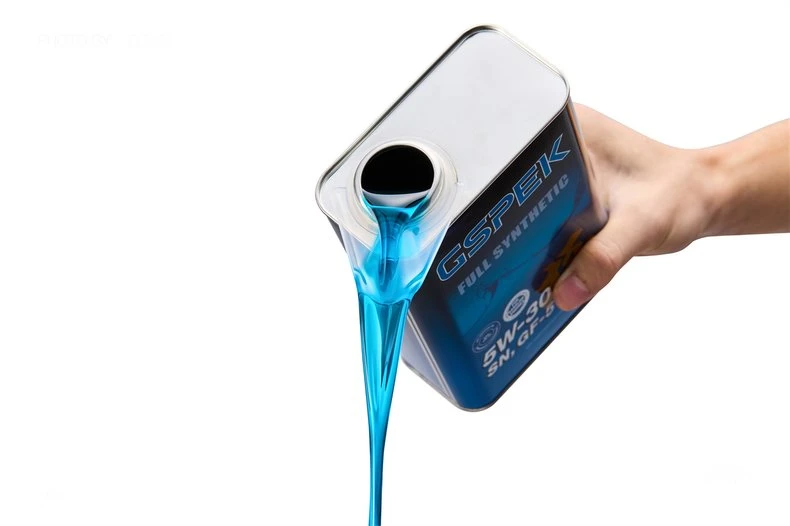

Pour-Action Detail Shot
The pour-action detail frame covers the 5W-30 SKU. We used the EF 24-70mm f/2.8L II set to 50mm for the longer working distance needed to frame a hand tilting the open can without crowding the lens. A dedicated backlight strip positioned behind the pour path makes the translucent cyan oil glow, addressing the dark-read issue of dyed lubricant under front light alone. High-speed flash with 1/4000s duration freezes the smooth oil stream without motion smear. The stream exits the bottom edge of frame to keep visual focus on the pour point, and the visible hand acts as a clear scale reference for can size.
High-Speed Liquid Concept Frames
The two high-speed concept frames use a cyan-dyed fluid matched to the oil's color, with no physical car parts or props. The first frame captures a droplet impact that forms a Worthington jet and concentric ripples arranged in an abstract steering wheel shape, a direct visual link between fluid performance and automotive use. The second frame captures a frozen translucent liquid arc with suspended spherical droplets, with a sliver of blue cup rim visible at bottom-left as the pour source and 75% of the frame left as pure white negative space reserved for ad copy. High-speed flash eliminates motion blur, and abstract fluid imagery centers the product's core functional attribute more directly than a standard car photo.
Post-Production and Retouching
Post-production follows a fixed, product-specific workflow. We applied -15 highlight recovery to the stamped tinplate top rim to retain metal texture without blown speculars, +5 white balance warmth to keep the brushed-gold kanji mark of the kiwami line from shifting to a green hue, and 0.5px output sharpening limited only to label text for readability. We ran a gradient banding check across the black-to-blue label after cleaning backgrounds to 255 white, then exported 2000x2000 px masters in sRGB JPEG and TIFF formats for client use.
“Even heavily dyed blue lubricant reads true to its real color when you treat light as a controllable material, not just a source of brightness” — Garbo, Director of Photography
Technical Specifications
| Technical Specifications | |
|---|---|
| Camera | Canon EOS 5D Mark IV, 30.4MP full frame |
| Lenses | EF 100mm f/2.8L Macro IS (pack shot); EF 24-70mm f/2.8L II at 50mm (pour action) |
| Lighting | 2x 60x90cm softboxes at 45 degrees; backlight strip behind the oil stream; high-speed flash (~1/4000s duration) |
| Sets | White seamless paper; liquid rig for droplet and splash frames |
| Talent/Props | Hand model for the pour frame; no other props |
| Retouching | -15 highlight recovery on tinplate rim; +5 warmth on the gold kanji; 0.5px label-text sharpening; 255 white cleanup |
| Deliverables | 2000x2000 px masters, sRGB JPEG + TIFF |
Frequently Asked Questions
Q: What's the rate for motor oil and automotive fluid product photography?
A: Standard rates are fixed site-wide at AIMI Visual Media, Guangzhou, China: white background product frames start from $12/image under our Essential package, and creative/action frames start from $35/image under our Growth package. This 4-image GSPEK set combined one Essential frame with three Growth frames. See the China product photography pricing guide for the full rate table.
Q: How long does a 2-SKU lubricant shoot take?
A: This 2-SKU GSPEK motor oil set required 5 business days from shoot start to final deliverable handoff. The high-speed liquid action and concept frames add roughly half a day of timing calibration and test shots compared to a standard all-pack-shot product set.
Q: Are the images compliant with Amazon automotive listing requirements?
A: Yes. The GSPEK set meets all Amazon automotive listing rules: the white-background pack shot uses a pure 255 white background, fills 85% of the frame, and the 2000x2000 px resolution exceeds the 1000 px minimum for zoom functionality. The remaining 3 frames are formatted for A+ Content use.
Q: Can you keep two viscosity SKUs visually consistent for one product family?
A: Yes. For this GSPEK set, we used an identical lighting map and fixed camera position for both the 0W-20 and 5W-30 SKU shoots. The only difference between the two labels is the printed viscosity and certification spec block, so the final assets read as a unified product line.
Q: How do you keep dyed blue oil from photographing black?
A: For the GSPEK blue-dyed oil pour shot, we used a dedicated backlight positioned behind the fluid stream, balanced against the front softbox exposure. Front-facing light alone causes dyed lubricant to read as near-black ink, with no visible bright translucent color.
Q: Do you handle Japanese-market packaging with kanji label elements?
A: Yes. The GSPEK 0W-20 can carries a brushed-gold kanji mark for its kiwami top-line tier. We applied +5 warmth in post to keep the gold hue metallic rather than green-shifted, and used a 100mm macro lens to keep all kanji and label text razor sharp.
Need professional photography for your automotive products?
If you need photography for automotive fluids or parts, we deliver white background, action, and creative assets — request a custom quote.
